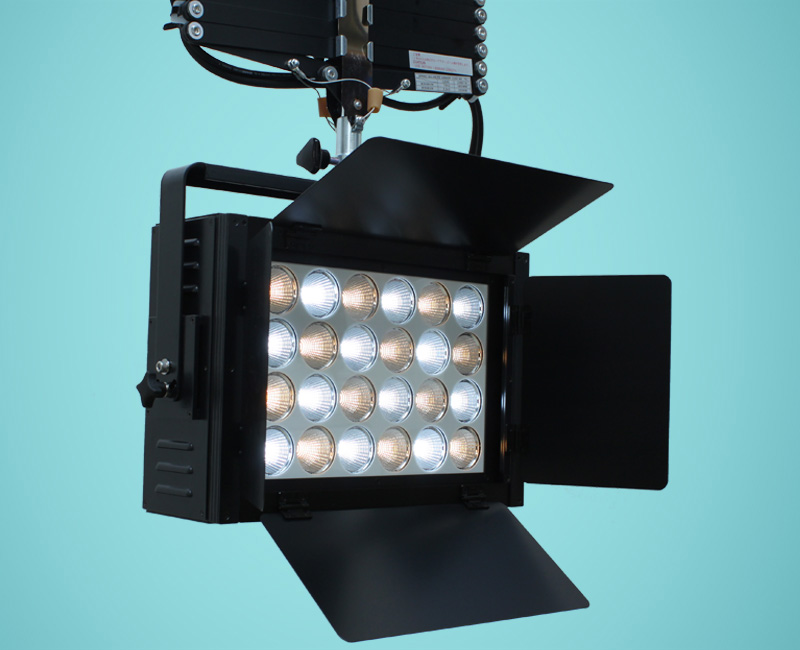

Artificial sunlight illumination– SOL-1000-24A27

Catalog Download

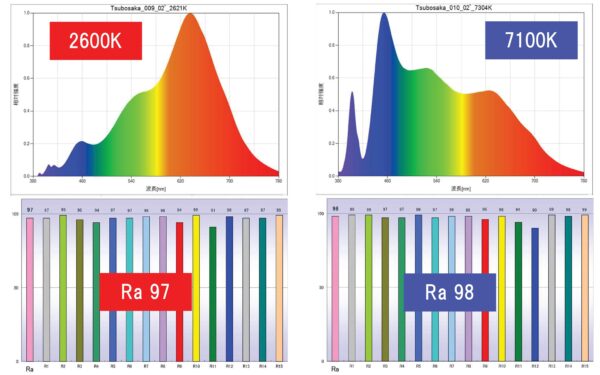

  • Used Ultra High color rendering LED Ra97,98 to reproduce the same color temperature as the sunlight
  • Wide correlated color temperature range for reproducing the natural light form morning to evening
  • Can be insert three pieces of charts such as color charts
  • USB control is possible. Using DMX control leads to the wireless communication control.
  • ON/OFF of the LCD backlight (at dark places)
  • Tripod fixing screw holes are on the top, bottom, left and right sides

What exactly is “Artificial sunlight” ?
⇒ It means that spectrum is extraordinary similar to sunlight in the visible range.

Other types of artificial sunlight illuminations

SOL-600-01T05: Spotlight type

SOL-300-02D27: Small type

SOL-100-09A27: Budget model

WP 3D Thingviewer Lite need Javascript to work.
Please activate and reload the page.

Bookmark

Model SOL-1000-24A27
Correlated color temperature [K] 3200, 5500, 6500, 7100 (Factory default)
Light source LED
Lighting method DC
Total luminous flux [lm] 13200
Illuminance [lx] 100-20000(away from 0.5m)
function Changeable registered illuminance
Adjusting illuminance function
Switching registered color temperature function
Pulse lighting (internal and external)
ON/OFF the display backlight
Display / Operation External communication control (serial communication by virtual COM port)
External communication control (DMX)
Designated PC software operation
Communication I / F 1) USB2.02) DMX-control
Power-supply voltage AC100 - 240V 50/60Hz
Power consumption [VA] 260 or less
Operating environment 1) Temperature: 15-30 ±2 [℃]
2) Humidity: Less than 80 [%]
Dimensions (WxHxD) [mm] 370 x 260 x 100
Weight [kg] 1) A body section: 4.5
2) A power supply part: 1.6
Extension 1) Barndoor addition
2) The lighting systematization that put several together
