- Measure automatically the flange back length and the focal length of a lens
- Measure the main position by the nodal slide method
- Image processing with a high resolution CMOS camera

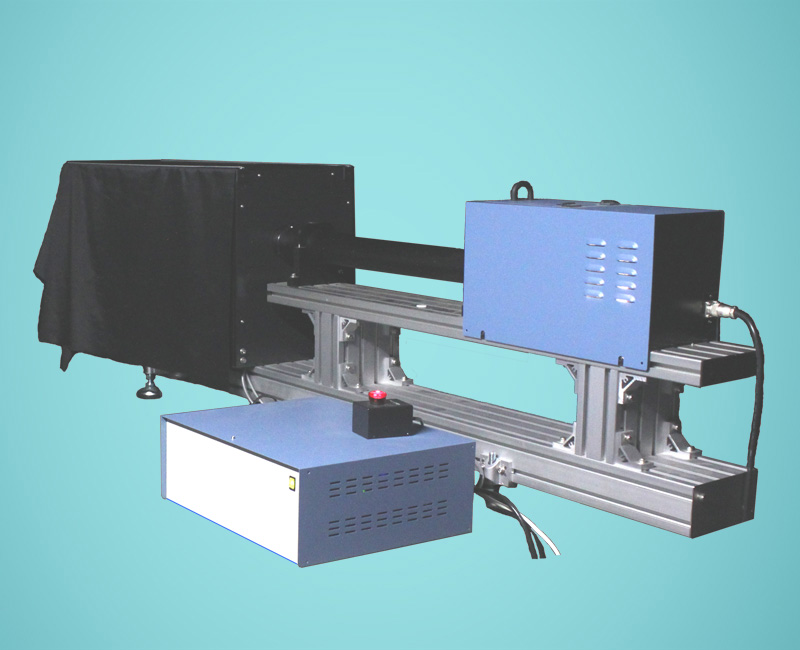

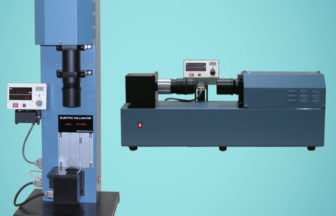

Flange Focal Distance Tester– FL-800
Model | FL-800 |
---|---|
Sensor | High resolution CMOS camera |
Pinhole | Diameter 0.5-10mm (Replaceable) |
Collimator optical system | Collimator lens f=800mm (Diameter 58mm) |
Object to inspect | Each lens f=1-200mm |
Measurement item | Flange back Focal length (The main position/ Focus position) |
Measurement method | Nordal slide method |
Display / Operation | Designated PC software control |
Supported OS | Windows7/8/10 |
Power-supply voltage | AC100V 50/60Hz |
Power consumption [VA] | 300 (except PC devices) |
Dimensions (WxHxD) [mm] | Measuring part: 1800x380x300 Operation part: 350x140x200 |
Weight [kg] | Measuring part: 90 Operation part: 4 |
Extension | Design a device for each lens mount Short focus small lens model subject lens focal length 1-10mm Integral sphere light source |
