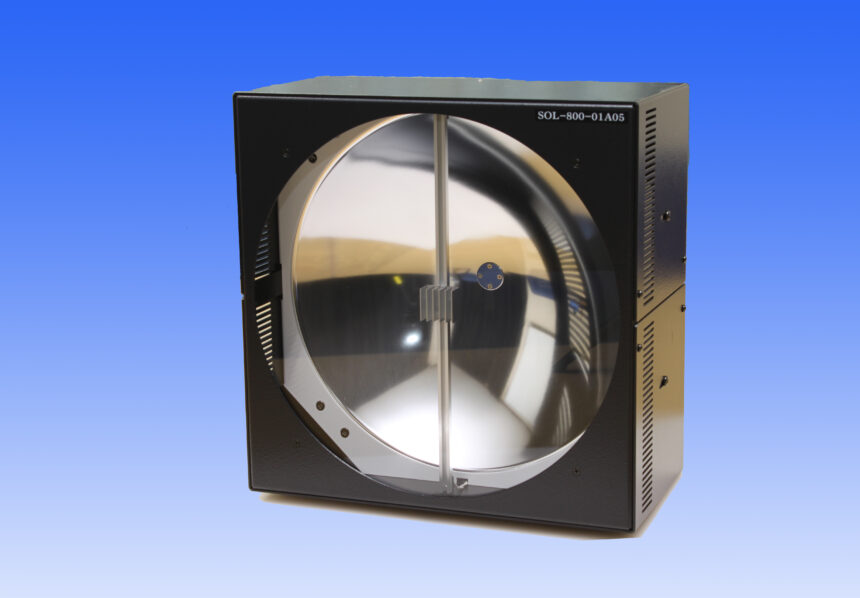

Spot light / Irradiating illumination device–SOL-800-01A05

  • Using high color rendering LED (Ra=97)
  • Suitable for 45,000lx spot light source designated by ISO16505, UN-R46
  • Suitable for the direct sunlight evaluation

Bookmark

Correlated color temperature [K] 5500+/-500
Light source LED
Lighting method DC
Illuminance [lx] Common use 45,000
Maximum 50,000 (0.5m away)
Illuminance plane (WxH) [mm] φ30 away from 0.5m
function Adjusting illuminance function
Display / Operation Operation unit of the main part
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] Less than 180
Operating environment Temperature: 10-40[℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] 320x320x160 without protrusions
Weight [kg] 3.5
