1 axis vibrating platform– V100

Catalog Download

  • Reproduce the 1 axis vibration
  • Equipped with a bearing to restrain vibrations effect on other axes

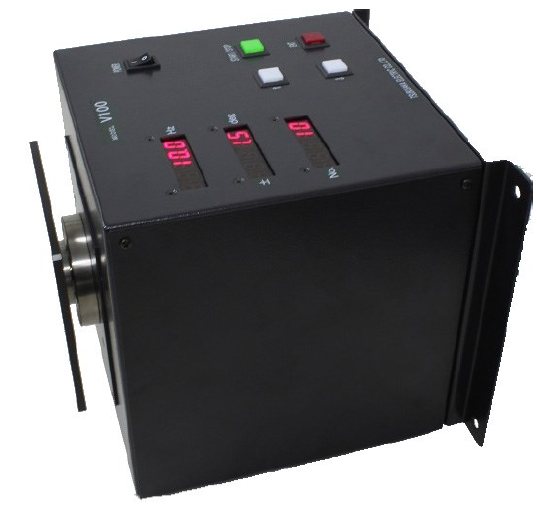

  • Lay the body to reproduce pitch and yaw

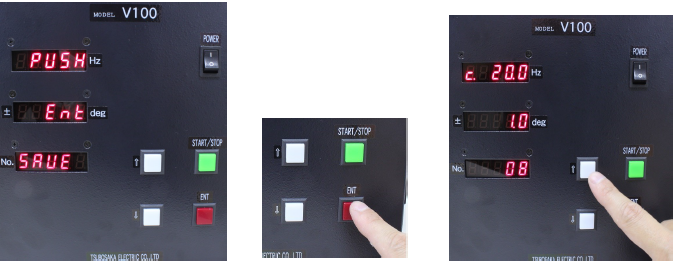

  • Easy to set an operation of the main part with the display

View the product in 3D
(There may be parts that are different from the actual product or parts that are not displayed due to capacity reasons)

WP 3D Thingviewer Lite need Javascript to work.
Please activate and reload the page.

Bookmark

Model V100
function Sine wave pattern vibration
Memorize and invoke the amplitude and the frequency
Bearing for restraining other axes
Display / Operation Operation unit of the main part
External communication control (serial communication with virtual COM port)
Load capacity [kg] 1.0
Frequency [Hz] 0.5-20.0
Amplitude [deg] +/-0.1-1.5
Communication I / F USB 2.0 conformity
Power-supply voltage AC adapter AC100 -240V 50/60 Hz
Operating environment Temperature: 5-45 [℃]
Humidity: less than 80[%] without dew condensation
Dimensions (WxHxD) [mm] 200×239×250
Weight [kg] 5.4

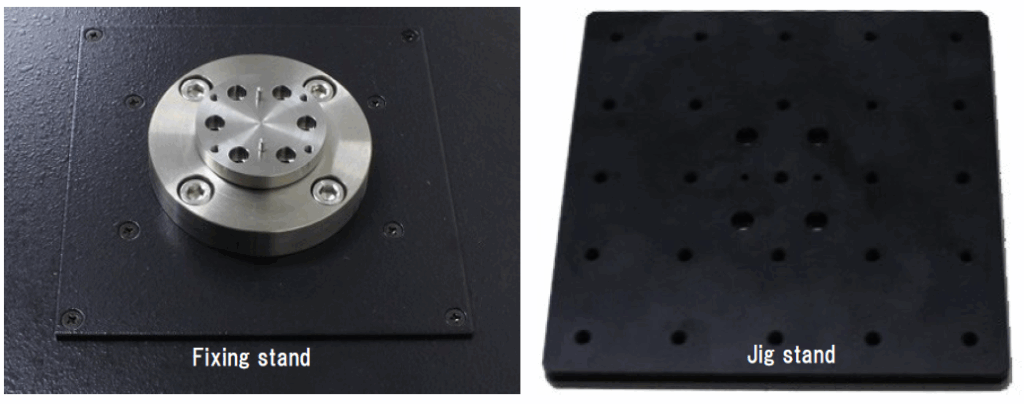

Extension Camera mount
PC control software
