- Illumination reproduces accurately light flickers for an evaluation of blind spots of a camera.
- Used for demonstrations for signals of a bus stop, a station or digital load signs.
- Change any patterns, words or figures within 7400 characters x 5 points font.
- Change refresh rate to simulate multiple displays by an one device.
- 7 colors
- Resolution: 320 x 64 = 20.480[dot]
- Pixel pitch: 3.0[mm]

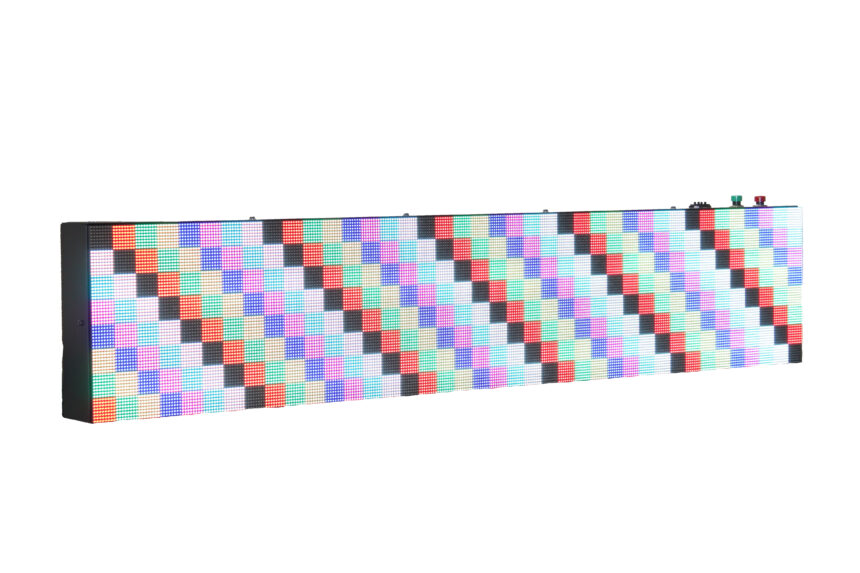

Letter Display Flicker Light Panel– DMLP320
| Model | DMLP320 |
|---|---|
| Function | Display unit: Invoke maximum 90 pages of display parameters Automatic switch a display parameter by an inside timer Designated PC software : Setting of the display parameter Setting of switching timing of the display parameter Select from varieties of font: Gothic, Narrow gothic, Round gothic, Minchotai, Taiminchotai |
| Setting range | Characters (JIS fist grade, JIS second grade, extended character almost 7,400 characters) Light up by each 1 dot / Free drawing to specify unlighted places Refresh rate: Standard 8.3333[ms] = 120[Hz] Changeable range: 3.3333-263.333[ms] 120-3.797 [Hz] |
| Display / Operation | LED display unit External communication control (serial communication) |
| Communication I / F | RS-232C RS-485 |
| Power-supply voltage | Rated input power: DC 5[V] 120[W] |
| Power consumption [VA] | Less than 12[A] |
| Operating environment | Temperature: 0-40[℃] Humidity: less than 80[%] without dew condensation |
| Dimension (WxHxD) [mm] | 963.5x195.5x67 |
| Weight [kg] | 3.2 |
| Extension function | DC 5V power supply unit |
