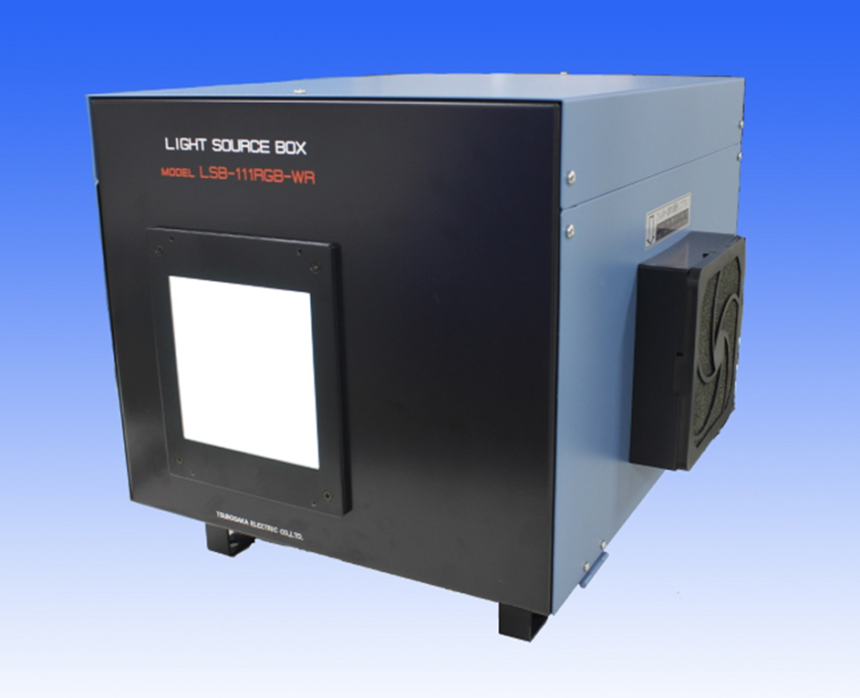

RGB-LED light source–LSB-111RGB

Catalog Download

  • Change an arbitrary color with RGB LEDs
  • Change luminance with keeping a color
  • Automatic revision of RGB ratio with individual sensors


Luminance [cd/㎡] 10-3500 (maximum RGB ratio)
Luminance surface (WxH) [mm] 100x100
Chromaticity unevenness [%] Less than 5 (at 1000 cd/m^2 and Each spectral intensity of RGB in φ85)
Light source LED
Lighting method PWM 1 [MHz]
Wavelength [nm] Basic peak wavelength
R: 632
G: 520
B: 449
function Adjust and register each output of RGB
Change registered luminance
Luminance feedback function
Display / Operation Designated PC software control
External communication control (Serial communication)
Supported OS Windows7, 10
Communication I / F USB2.0
Power-supply voltage AC100-240[V] 50/60Hz
Power consumption [VA] 220
Dimensions (WxHxD) [mm] 376x308x380
Weight [kg] 17
Extension Extend luminance range of low luminance side (Change from 0.10cd/m^2)
