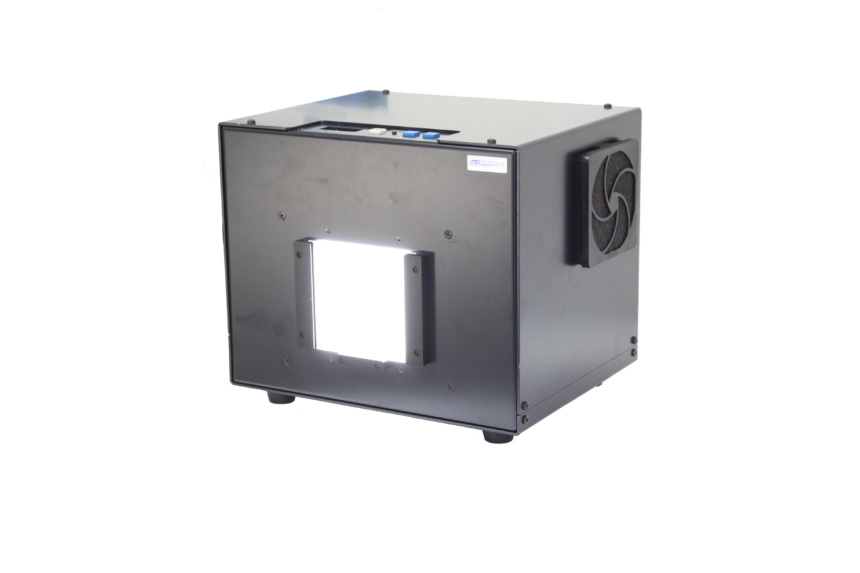

Visible + NIR broad lighting SOL-80VNIR

  • Visible and NIR 80mm surface light source
  • Visible and NIR broad spectral distribution (visible band ~ NIR 1070nm)
  • Intensity of radiant energy by each spectral wavelength is adjusted or is programmed with an attached PC software

Bookmark

Model SOL-80VNIR
Luminance [cd/㎡] 300
Luminance surface (WxH) [mm] 80 x 80
Light source LED
Lighting method DC lighting
Illuminance [lx] 500-700 (depends on a diffuser )
function Diffusing sheet on the luminance surface, Diffusing plate, 80x80mm filter insert mechanism
Radiant energy of spectral wavelength from visible to NIR 690-1050nm is changeable
Radiant energy of spectral wavelength from visible to NIR 690-1050nm can be programmed
Communication I / F USB2.0
Power consumption [VA] Less than 130
Operating environment Temperature: 15-30[℃]
Humidity: less than 80% without dew condensation
Dimensions (WxHxD) [mm] Light source unit: 250 x 217 x 200
Power supply unit: 230 x 136 x 151
Weight [kg] Light source unit: 4
Power supply unit: 2
Accessories Connection cable: 2.5 [m]
