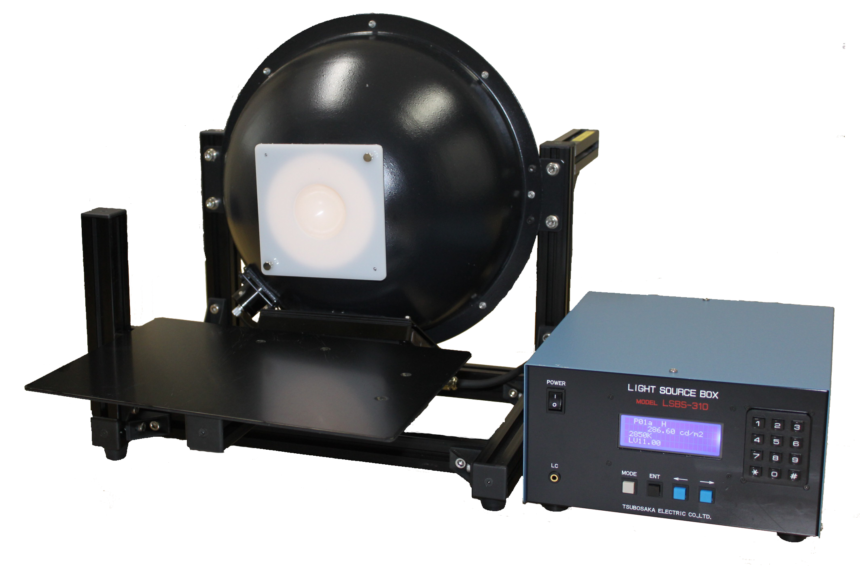

High uniformity integrating sphere light source–LSBS-310WCRI

  • Φ300mm integrating sphere
  • High luminance 30,000cd/m^2
  • Luminance is always stable with luminance feedback function
  • Multiple color temperature can be set
  • Output high luminance in spite of high color temperature
  • Using spherical diffusing plate (separate sold) makes  various wide angle camera evaluations
  • Can be also used for IR (850nm, 940nm, 1050nm, 1300nm, 1550nm etc.)


Luminance [LV] 4-17.71
Luminance [cd/㎡] 2.24-30,000
Luminance unevenness [± %] 3
Correlated color temperature [K] Maximum 6 points from 2600-6500
Light source LED
Lighting method DC
function Arbitrary luminance setting function
Luminance feedback function
Pulse lighting (internal/external)
Auto calibration (connecting LC-5)
Setting range 300
Setting range 100
Display / Operation Display of the operation unit
Display monitoring luminance
Control the operation unit
External communication control (serial communication)
Communication I / F USB2.0
Power-supply voltage AC100-240V 50/60Hz
Power consumption [VA] 100
Dimensions (WxHxD) [mm] Light source unit: 390x400x563
Operation unit: 230x134x250
Weight [kg] Light source unit: 9
Operation unit: 3
Extension Setting color temperature
Add dim range
Attach semi spherical diffusing plate
